14W/20V SMD LCD/CCFL Driving Inverter Transformer

Place of Origin : Mainland China

Brand Name : IKP

Certification : RoHs/CE/UL/SGS

Model Number : IKP-CTX4108-1420

MOQ : 500PCS

Price : USD:4.0-8.0

Packaging Details : CTN

Delivery Time : 3-10 DAYS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20,000PCS/WEEK

Contact Now

Description

•Transformer for use in CCFL power supplies, available in through-hole and surface mount recess or gull wing versions, incorporating floating or fixed secondary technology

•Supply output current up to 30 milli-Amps

•Frequency range from 40 to 80 KHz

•Deliver output power from 2.5 to 14 Watts

•Operate in royer and other topologies

•Ferrite core material

Applications

•CCFL power supplies

Environmental Data

•Storage temperature range: -40℃ to +85℃

•Operating ambient temperature range: 0℃ to +70℃

•Solder reflow temperature: +260℃max, for 10 seconds max

Packaging

•Supplied in bulk packaging

Part Number	Schematic Diagram	Pout Walts	Lp μH2	DCRp Ohms Max	DCRs Ohms Max	TR Ns/Np	Vpri Volts Max2	Vsec Volt Max2	Is Max A rms	Vpri Abnormal2	Vsec Abnormal2
CTX410805-R	E	14	24	0.030	262	67	20	1340	.030	30	2000
CTX410807-R	E	14	16	0.024	272	86	15	1340	.030	23	2000
CTX410809-R	E	14	16	0.024	314	100	13	1340	.030	23	2000

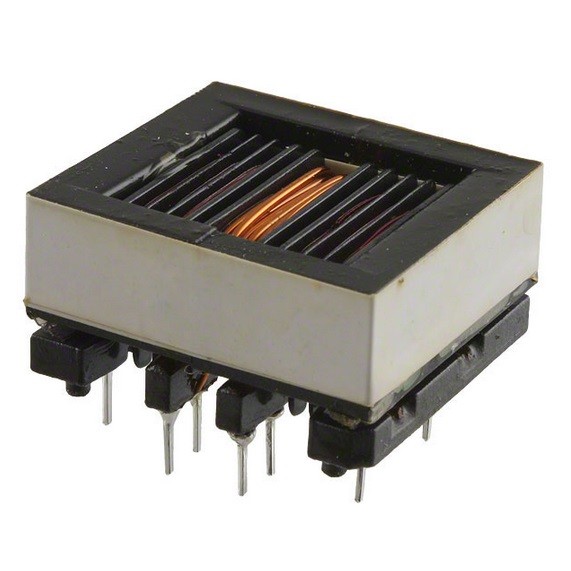

14W/20V SMD LCD/CCFL Driving Inverter Transformer Images
